Description

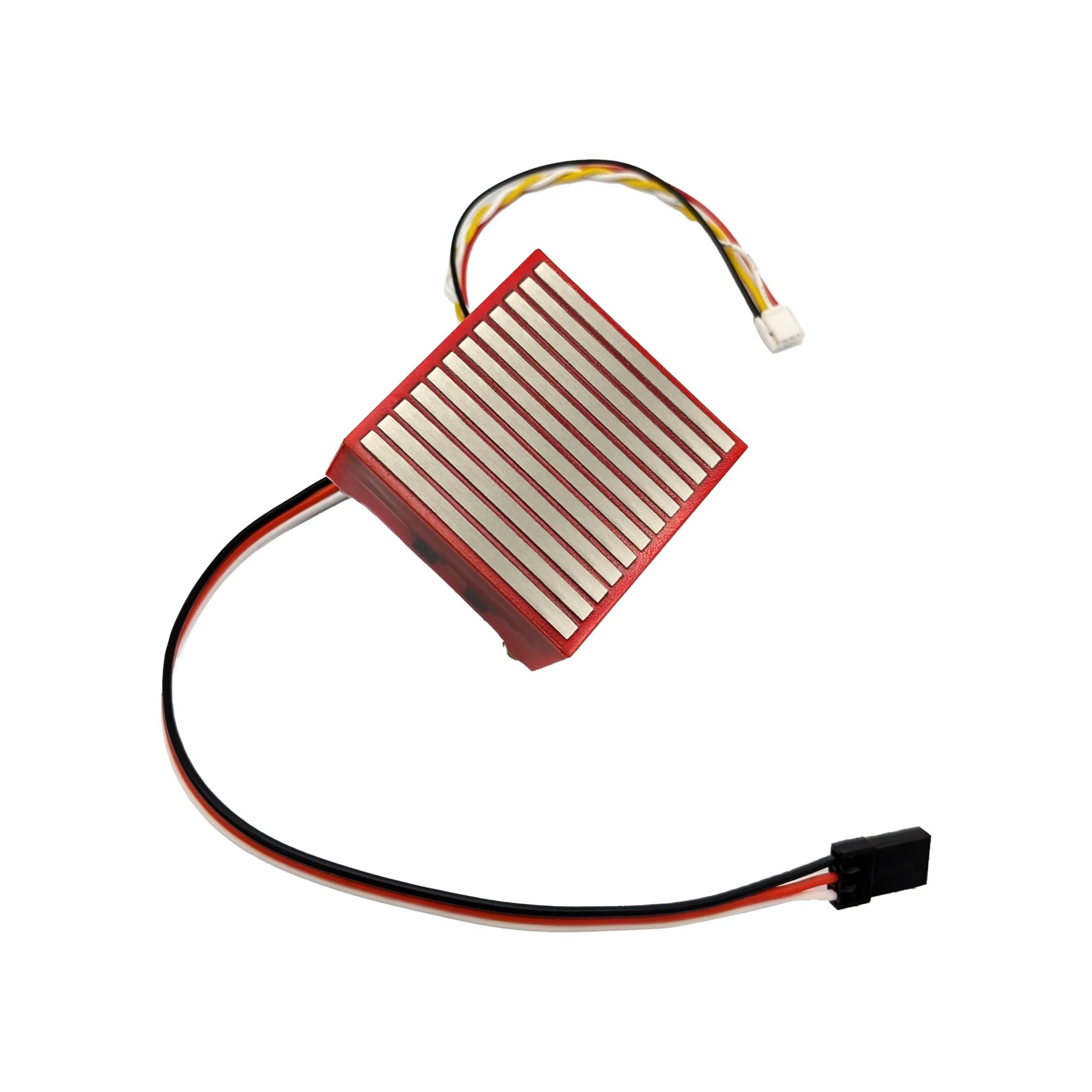

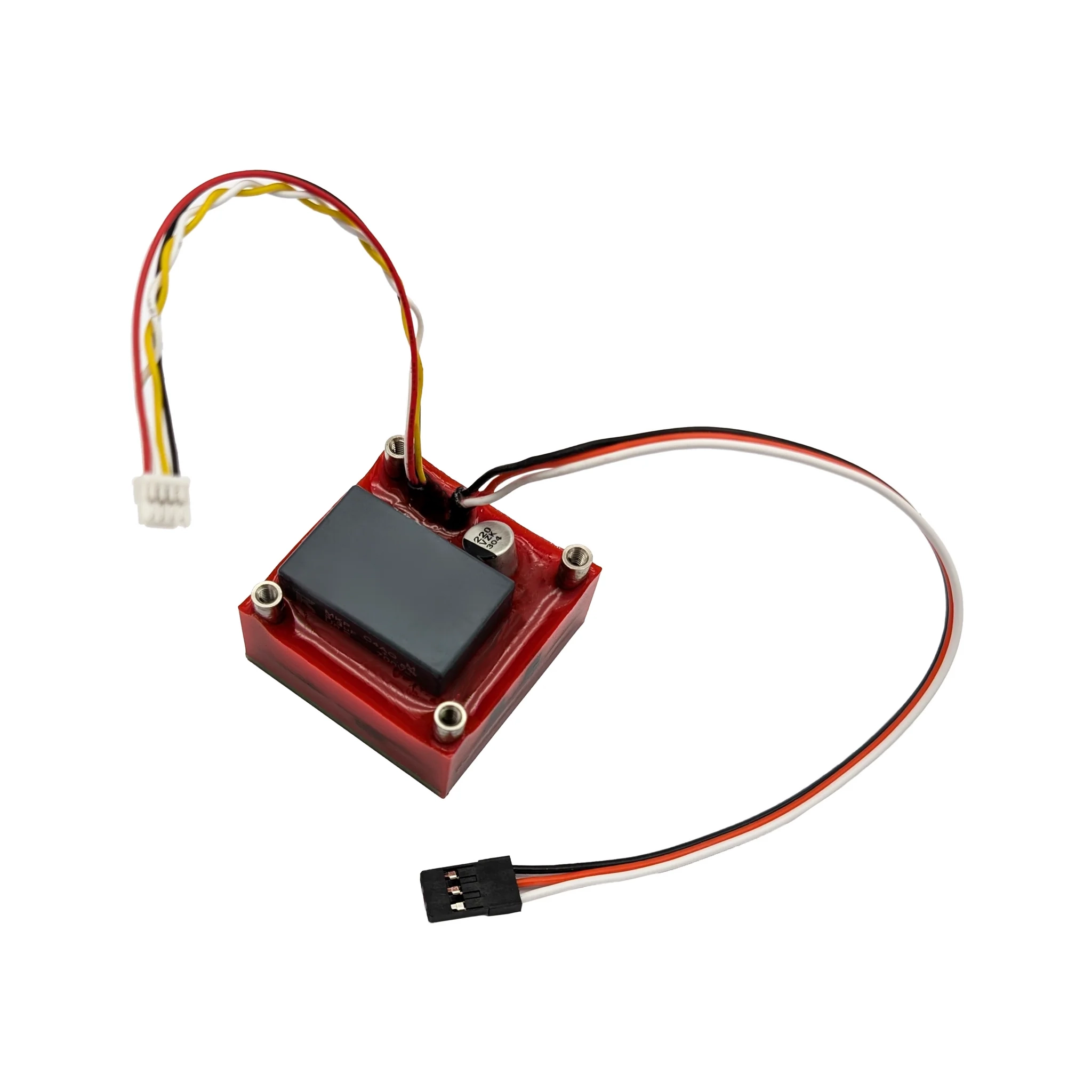

FG40 is an electro-permanent magnet (EPM) designed for aerospace, robotic, and industrial applications. It combines the advantages of electro- and permanent magnets by being able to switch between the on-state and off-state on demand (like an electromagnet); while consuming zero power in either state (like a permanent magnet).
The device supports the following communication interfaces:
- Cyphal/CAN FD control with diagnostic telemetry;
- RCPWM control input (A-suffix models only);
- voltage level control input (A-suffix models only);
To get started, explore various application examples or refer to the quickstart guide.
For more information, consult the reference manual.
Specifications
| Mass | 72 g |
| Dimensions | 40✕40✕22 mm |
| CAN bus | 1 (non-redundant) |
| Analog control | Yes |
Applications
- Magnetic locks, clamps, and holders.
- Payload attachment in vehicles, drones, and robots.
- Quick-assemble structures.
- Quick-release batteries in EVs and drones.
- Workholding in CNC machines.
- End-of-arm tooling (EOAT).
- Steel surface climbing legged robots.
